Trak Racer V2 Pro 2CH 200W Low-Frequency Class-D Amplifier and Bass Shaker Kit with Rig Mount
Trak Racer V2 Pro 2CH 200W Low-Frequency Class-D Amplifier and Bass Shaker Kit with Rig Mount
Trak Racer Pro Bass Shaker & Stereo Amplifier Kit with Universal Mounting Plate – Simulation Vibration & Immersion System
Upgrade your simulator or gaming setup with the Trak Racer Pro Bass Shaker & Amplifier Kit with Universal Mounting Plate, a high-end tactile feedback system engineered to deliver deep, powerful low-frequency vibration for sim racing, flight simulation, FPS gaming, and music.
This complete kit includes a dedicated mounting plate that allows the bass shaker to be securely installed on Trak Racer cockpits as well as non-Trak Racer simulator frames, making it a truly universal immersion solution.
Designed by simulation specialists since 2008 and trusted through partnerships with the Alpine Formula 1 Team, Porsche, and Airbus Aircraft, this system reflects motorsport-grade engineering refined for immersive simulation environments.
Designed for Simulation, Gaming & Low-Frequency Immersion
Unlike basic vibration motors or cheap mono bass shaker kits, the Trak Racer system combines a high-power tactile transducer, a true stereo Class-D amplifier, and an included universal mounting plate to reproduce low-frequency effects accurately and without distortion.
- Sim Racing: engine RPM, exhaust resonance, kerbs, bumps, wheel slip
- Flight Simulation: runway rumble, turbulence, touchdown impact
- FPS & Gaming: gunfire, explosions, recoil, environmental effects
- Music & Media: deep bass you can physically feel
Perfect for titles such as iRacing, Assetto Corsa, Assetto Corsa Competizione, rFactor 2, F1 23 / F1 24, Microsoft Flight Simulator, DCS World, Call of Duty, Battlefield, and other first-person shooter and simulation games.
What’s Included in the Kit
- 1 × TR-BSA100 High-Power Bass Shaker (Tactile Transducer)
- 1 × 200W Trak Racer Amplifier (TR-BSA-KIT-200)
-

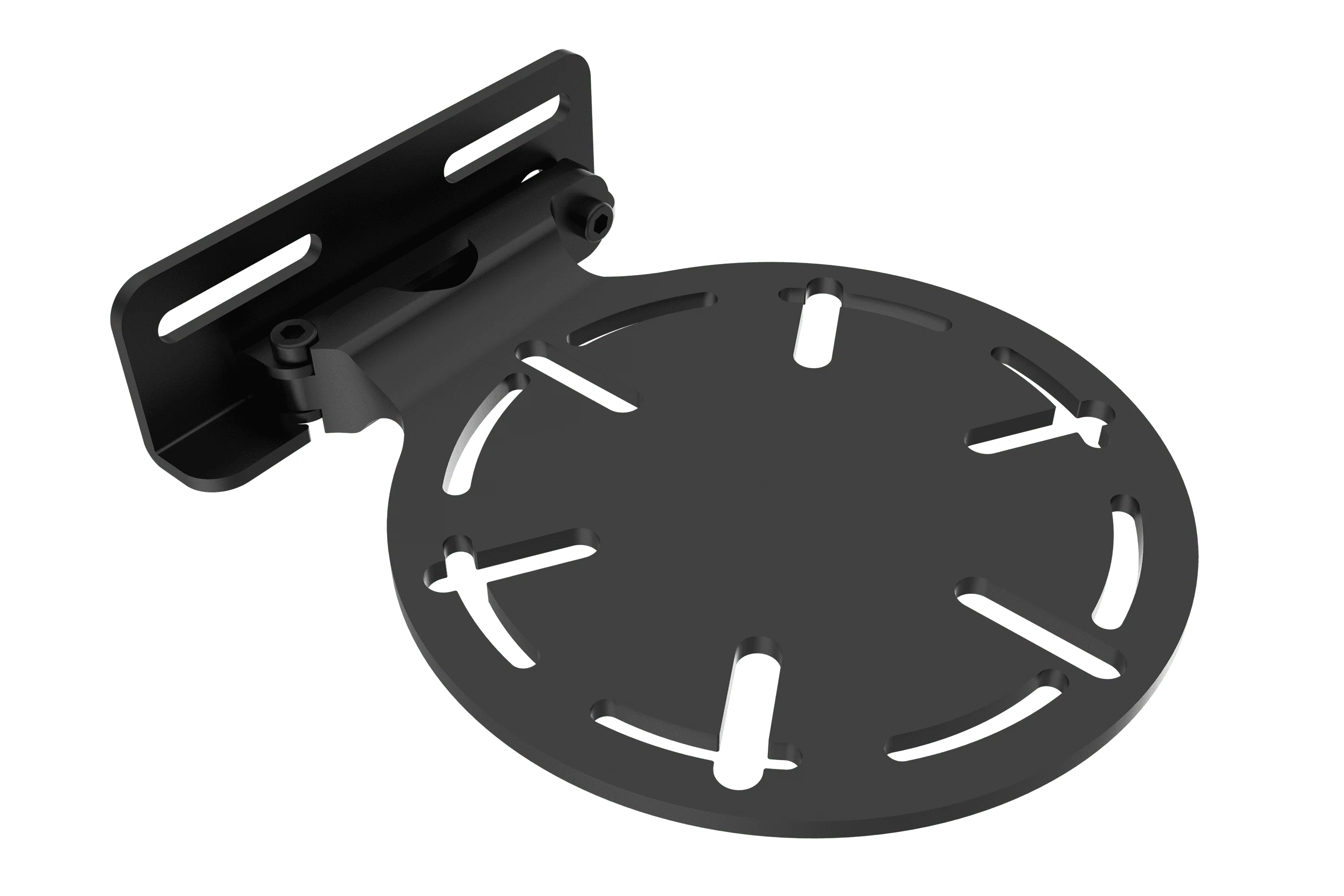

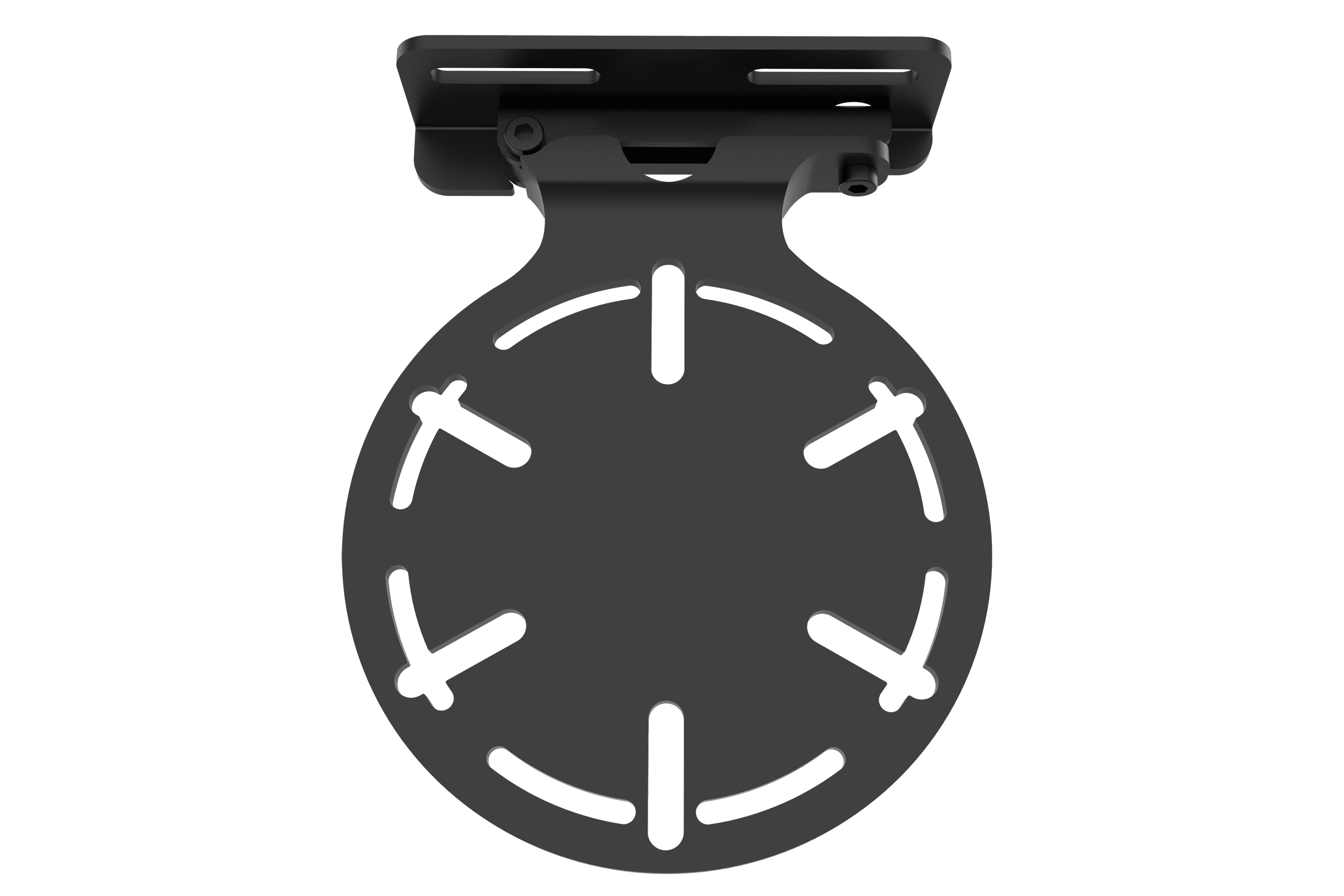

1 × Universal Bass Shaker Mounting Plate
Designed for secure installation on Trak Racer and non-Trak Racer cockpits, simulator frames, and rigs -
2 m / 6.374 ft 16-Gauge Heavy-Duty Speaker Wire
Low-resistance cable designed to handle high current and deliver clean, distortion-free low-frequency power - Audio input connection cables (RCA / 3.5 mm)
Expandable System:
• Amplifier supports an optional second bass shaker for increased immersion
• Compatible with additional Trak Racer mounting solutions for seats, cockpits, and motion platforms
High-Power Bass Shaker – Feel the Engine, Exhaust & Impacts
The included TR-BSA100 bass shaker is designed to move serious mass. With 50W nominal power and 100W peak handling, it delivers strong, physical vibration across a wide 20–120 Hz frequency range, making it ideal for deep engine notes, exhaust rumble, impacts, and low-frequency effects that smaller shakers cannot reproduce.

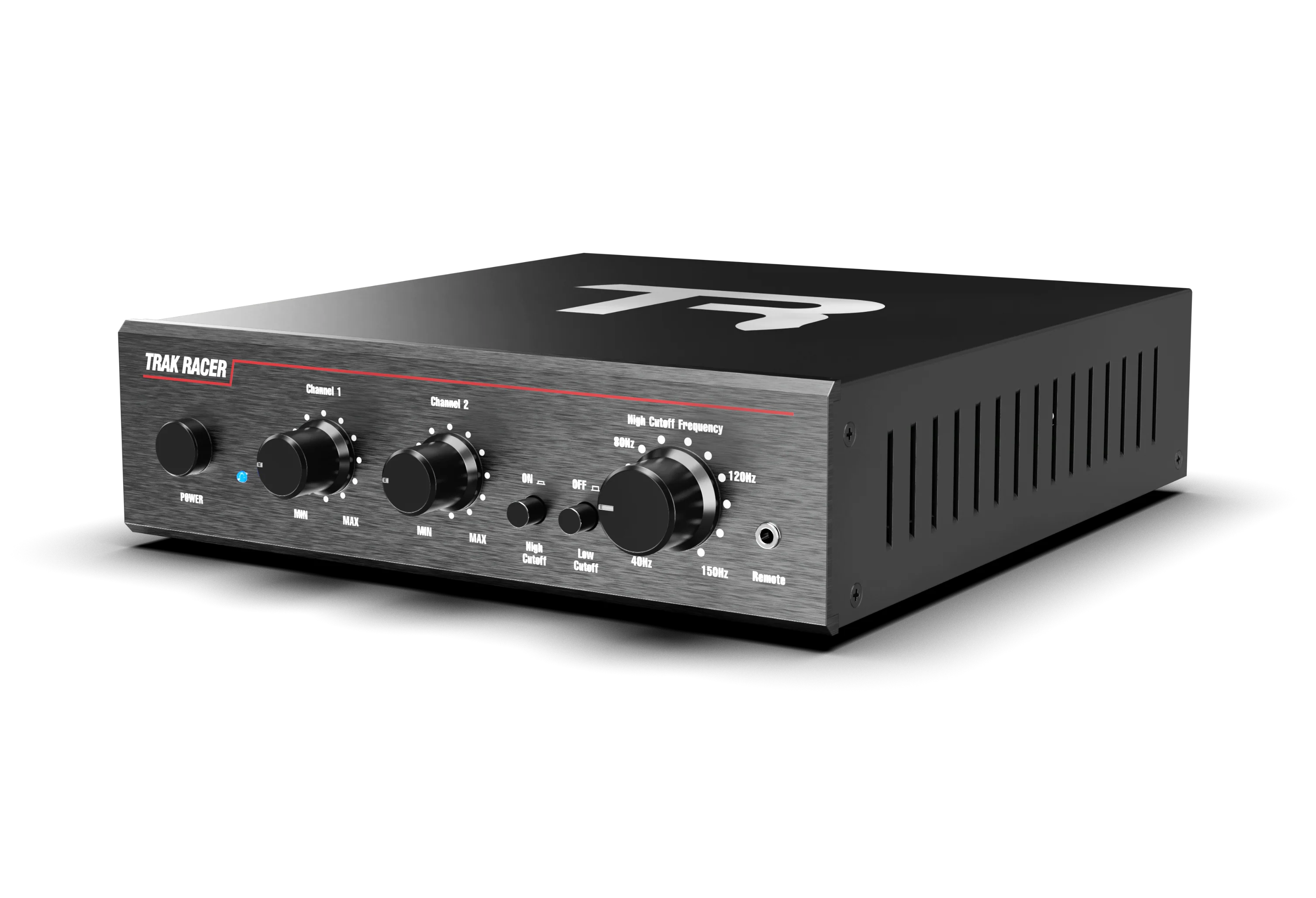

Stereo Amplifier – Precision Control, Not a Cheap Mono Amp
At the heart of the system is the 200W Trak Racer Amplifier (TR-BSA-KIT-200). Unlike entry-level mono solutions, this amplifier provides true 2-channel output, adjustable low-pass filtering, and efficient Class-D power delivery.
With 100W RMS @ 4Ω / 50W RMS @ 8Ω, it allows precise tuning of vibration strength and frequency response, ensuring clean, controlled tactile feedback that dramatically improves realism in simulation and gaming.
Specifications – 200W Trak Racer Amplifier (TR-BSA-KIT-200)
| Output channels | 2 |
| Input channels | 2 (RCA + 3.5mm audio jack) |
| Output power | 100W RMS @ 4Ω / 50W RMS @ 8Ω |
| Input sensitivity | 250 mV |
| Frequency response | 30–200 Hz ±3 dB |
| Variable low pass adjustment | 50–200 Hz |
| Total harmonic distortion | 1% (stereo), 0.05% (mono) |
| Signal to noise ratio | 95 dB @ 100 Hz A-weighted |
| Power requirements | 110–240 V AC |
| Max power consumption | 313 W |
| Stand-by power rating | 10 W |
| Auto turn-on sensitivity | 10 mV |
| Amplifier Class | Class-D |
Specifications – TR-BSA100 Bass Shaker
| Product Model | TR-BSA100 |
| Type | Low-Frequency Tactile Transducer |
| Dimensions | Ø155 × 51 mm |
| Impedance | 4 Ω |
| Nominal Power | 50 W |
| Maximum Power | 100 W |
| Frequency Range | 20 – 120 Hz |
| Weight | 1.25 kg |
Feel the engine. Feel the bumps. Feel the shots. Feel the bass.
Built by sim racers. Proven in motorsport. Engineered for immersion.
